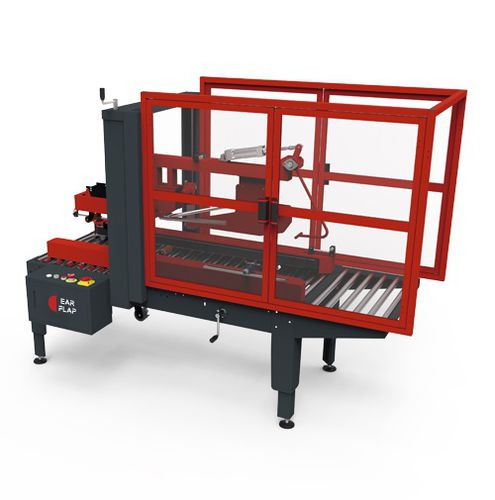

Multi-flap case sealer P35 series

adhesive tapeautomatic

Automatic case sealer single format Reinforced metal basic structure with a lower sealing head inserted on a section of metal rollers attached to a metal bridge that supports the upper sealing head.The boxes already formed are taken by a system of belts that transport them through the machine for a quick closing of the lower and upper flaps, leaving the box formed and sealed. Height and width adjustment is done manually. Standard machine Production variable according to carton format Dimensional adjustment: manual Carton sealing top and bottom Carton dragging by side belts with independent engines Adjusting working height from 570 mm to 800 mm An interchangeable taping head which allows using tape from 48 to 72 mm width  Carton boxes Type: RSC or B1 Length: 150/400 – 700 mm. Width: 115 – 510 mm. Height: 150 – 500 mm The maximum length of the box will depend on its width, its maximum length being 700 mm with 115 mm wide boxes and 400 mm. with 510 mm wide boxes. Other dimension on request (it can add an extra cost) Standard machines variations Stainless steel AISI 304 Carton sealing top and/or bottom with Hot Melt Tape end detector with alarm Automatic dimensional adjustment Conveyors of free rollers indeed/outfeed of different lengths Motorized conveyors (rollers or bands) infeed/outfeed of different lengths Other colors on request (it can add an extra cost)
