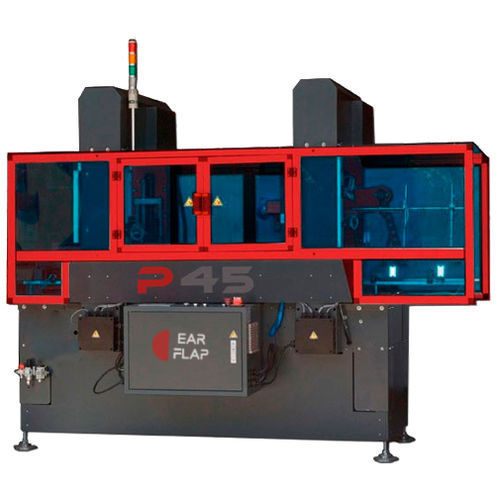

Multi-flap case sealer P45 series

adhesive tapefully-automatic

Automatic case sealer for random format Metal basic structure reinforced with a lower sealing head inserted in a section of metal rollers that is in turn attached to a metallic bridge that supports the upper sealing head. Formed boxes are taken by a belt system which conveys longitudinally through the machine for fast closing lower and upper flaps. After that the box is formed and sealed. The adjustment in height and width is automatic. Standard machine Variable production according to carton format Automatic dimensional adjustment Carton sealing top and bottom Carton dragging by side belts with independent engines Adjusting working height from 570 to 800 mm Carton boxes Type: RSC or B1 Length: 250 – 500 mm. Width: 210 – 450 mm. Height: 200 – 400 mm Other dimensions on request (it can add an extra cost) Standard machine variations Stainless steel AISI 304 Carton sealing top and/or bottom, with hot melt Tape end detector with alarm Automatic dimensional adjustment Motorized conveyors (roller or bands) infeed/outfeed of different lenghts Other colors on request (it can add an extra cost) ATEX
