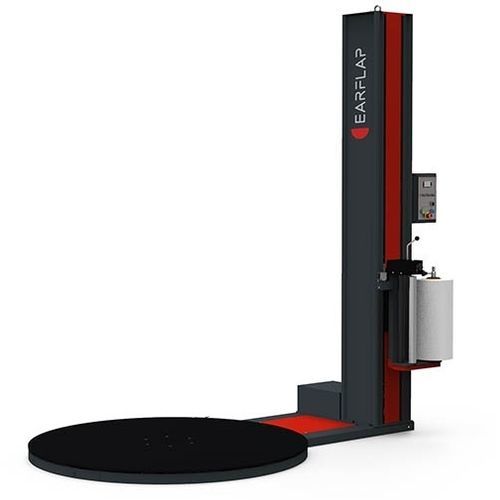

Turntable stretch wrapper 200

semi-automaticwith mechanic brakingfor cardboard boxes

Machinery for wrapping palletized loads with stretch film. Semiautomatic wrapping machines. Detect the height of the pallet making an optimized wrapping process. At the end of the cycle, they require the presence of the operator to cut the film and remove the pallet. The pallet is introduced into the turntable. The platform will start its turn at the selected speed according to the kind of wrap selected. At the end of the cycle the presence of an operator is required to cut the film and remove the pallet. Standard machinery Ear Flap Profile Hinged mast Powered film carriage with variable speed, placed sidewise Adjustable mechanical film brake with foot trapping detector Automatic load height detection by photocell Turntable dimensions: Ø 1.650 mm, 10 mm thick plate Soft start/stop by Scheneider frequency inverter with a return to starting position 4 wrapping programs: Single/Cross-wrap/Cross-plus/Full Wrapping cycles counter Independently adjustable top & bottom reinforcement wraps SIEMENS PLC controlled, with display control panel Independent ascent and descent carriage speed for film saving Reinforcement wraps at any point in the circle Ergonomically designed control Variable production depending on the operator and the characteristics of the load Options 1. Turntable accessing ramp  2. Embedding frame 3. Scale with display  4. Direct film brake 5. Mechanical film brake (standard)  6. Electromagnetic brake  7. Powered pre-stretch film 300% 8. Twin film holder 9. Powered top platen  10. Powered top platen for flat loads
