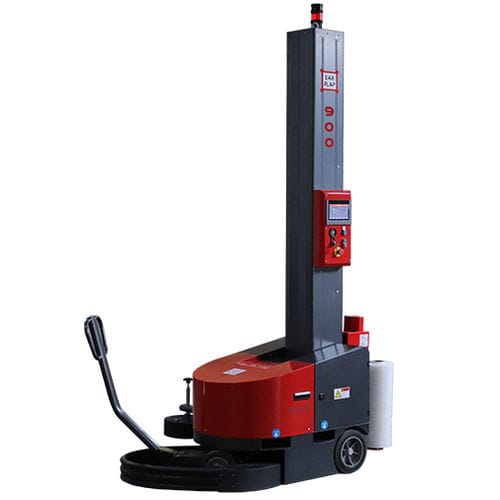

Semi-automatic wrapping robot 900

orbitalpalletmobile

Semiautomatic robot pallet wrapper Detect the height of the pallet making an optimized wrapping process. At the end of the cycle, they require the presence of the operator to cut the film and remove the pallet / robot. The palletized load to be wrapped is placed within the turning radius of the robot. The equipment will start its turn, at the speed according the type of wrapping chosen. Standard robot Battery capacity for >100 pallets (depending on the load size and program) Powered film carriage with variable speed Powered pre-stretch selectable 300 or 380 % Automatic load height detection by photocell Soft start/stop frequency inverter with a return to starting position 4 wrapping programs: Single / Cross-wrap / Cross-Plus / Full Wrapping cycles counter Independently adjustable top and bottom reinforcement wraps SIEMENS PLC control and LCD touch screen CBL performance control and diagnosis (Control Battery Life) Customizable wrapping programs
