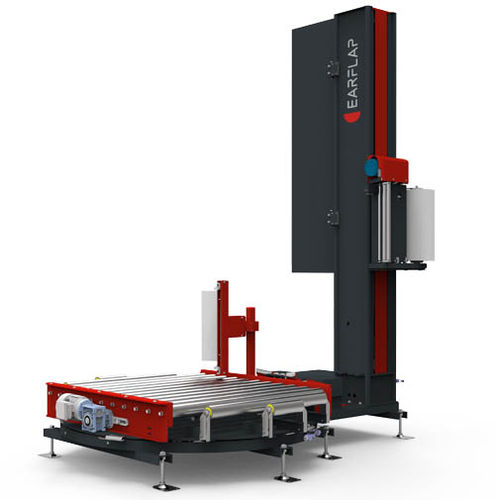

Turntable stretch wrapper TRM500

automaticfor cardboard boxespallet

Automatic turntable wrapper machine Automatic wrapping system based on a a platform that rotates concentrically with the pallet. This model of wrappers does not need the presence of operators at the end of the cycle. In this model the input, positioning and output of the pallet is automatic, with the necessary interconnections with conveyors and other machines of the automated line. Standard Machine EAR DLAP profile Powered film carriage with variable speed, placed sidewise Powered pre-stretch 300% with foot trapping detector Automatic load height detection by photocell Soft start/stop by SCHENEIDER frequency inverter with a return to starting position Pneumatic clamp to hold film before the wrapping cycle Automatic film cutting arm Turntable with motorized rollers conveyor Turntable with motorized 3 chains conveyor (optional)  Wrapping cycles counter Reinforcement wraps at any point in the cycle Controlled by PLC SIEMENS HMI touch screen  Up to 20 pallets/hour (variable output depending on the load features, number of wraps, etc.) 10 Programs customizable by the user  Standard machine variations Powered pre-stretch 300% Blowers initial film Pneumatic clamp to hold the film Automatic film cutting arm Heat welding of direct contact to the load Special environments (ATEX, corrosive or -0º) Powered top platen Top sheet dispenser TDM 1800
