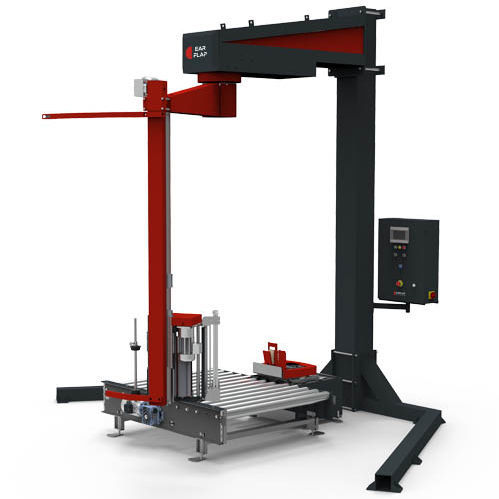

Rotary arm stretch wrapper ARM2500

automaticpalletwith motorized roller conveyor

Automatic rotary arm pallet wrapper Automatic rotary arm pallet wrapping machine. Specially designed for unstable loads as the pallet remains static during its wrapping. The pallet is introduced into the arm radius. The arm will start its turn at the selected speed according to the type of wrap selected. This model of wrappers does not need the presence of operators at the end of the cycle. In. this model the input, positioning and output of the pallet is automatic, with the necessary interconnections with conveyors and other machines of the automated line.  Standard Machine Rotary arm with anti-obstacle photocell Powered film carriage in the rotary arm with frequency inverter Automatic wrapping cycle 3 Automatic wrapping cycles: Simple / Double / Complete Useful wrapping height up to 2.000 mm (optional other heights) Soft start and indexed stop with SCHNEIDER speed inverter  Powered pre-stretch carriage 300% with anti-entanglement and roping system Automatic load height detection by photocell Production +-20 pallets hour (variable depending on the characteristics of the load, number of wraps, etc.) 3ALL feature: clamping, cutting and dolly heat sealing Wrapping cycles counter Top and bottom reinforcement wraps independently adjustable Controlled by SIEMENS PLC with LCD touch screen Variaciones a la máquina estándar Central powered roller conveyor 1.800 mm high safety fences with access doors and photocells for anti-intrusion for the infeed and outfeed of the load with muting alarms. Pallet lift able to wrap the load and the pallet
