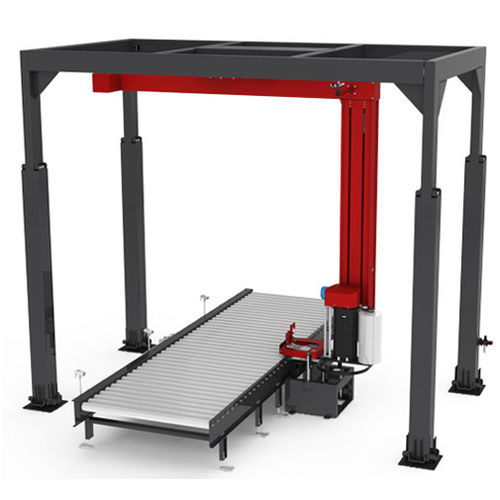

Rotary arm stretch wrapper ARM3500

automaticpalletwith motorized roller conveyor

Automatic rotary arm pallet wrapper Specially designed for unstable loads as the pallet remains static during its wrapping. The pallet is introduced into the arm radius. The arm will start its turn at the selected speed according to the type of wrap selected. This model of wrappers does not need the presence of operators at the end of the cycle. In this model the input, positioning and output of the pallet is automatic, with the necessary interconnections with conveyors and other machines of the automated line. Standard machine Powered pre-stretch carriage 300% with anti-entanglement and roping system Load height detection by photocell (Optional: detection by ultrasounds for black loads) Rotary arm transmission by sprocket Reel carriage transmission by 1/2 chain Soft start and indexed stop with SCHNEIDER speed inverter 3ALL feature: Clamping, cutting and dolly heat sealing Wrapping cycles counter Independently adjustable top and bottom reinforcement wraps Independently adjustable roping system to reinforce the load Light and sound indicators for functioning signals and alarms Controlling by PLC SIEMENS Panel control with touch screen Production +- 50 pallets/hour (variable depending on the characteristics of the load, nombre of wraps, etc.) 10 customizable programs by the user: Starting, upper and final wraps, overlapping lapse, roping, etc. Standard machine variations Central powered roller conveyor 1.800 mm high safety fences with access doors and photocells for anti-intrusions for the infeed and outfeed go the load with muting alarms. Pallets lift table to wrap the load and the pallet.
