Orbital stretch wrapper ORM series
automatictubefor boards

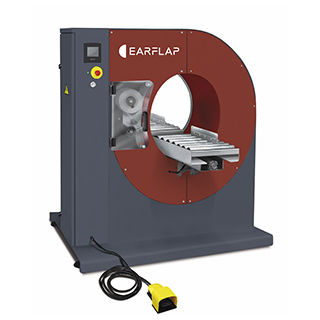

Orbital stretch wrapper - ORM series - EAR FLAP® - automatic / tube / for boards
Orbital stretch wrapper - ORM series - EAR FLAP® - automatic / tube / for boards
Orbital stretch wrapper - ORM series - EAR FLAP® - automatic / tube / for boards - image - 2
Add to favorites
Compare this product


Characteristics

Type
orbital
Operating mode
automatic
Product applications
for furniture, for profiles, for boards, tube, for beam, sheet
Other characteristics
stretch film, with motorized roller conveyor
Height

1,920 mm, 2,445 mm, 2,545 mm, 2,645 mm
(76 in, 96 in, 100 in, 104 in)

Width

1,600 mm, 2,000 mm
(63 in, 79 in)

Length

1,800 mm, 2,200 mm, 2,400 mm, 2,700 mm
(71 in, 87 in, 94 in, 106 in)

Voltage

400 V

Power

0.75 kW, 1.25 kW, 1.5 kW, 2.24 kW
(1.02 hp, 1.7 hp, 2.04 hp, 3.05 hp)

Description

Orbital stretch film wrapper with rotating crown for continuous or band packaging. The ORM Series is used for the complete or partial wrapping and wrapping of all types of products: Furniture, aluminum and wood profiles, boards and sheets. tubes, beams, etc. Everything that need a protection and/or fastening process, thus replacing traditional strapping. The most economical packaging system. The ORM series consists of two types of machines: Semi-automatic (1) and automatic (2).  In the semi-automatic model, the rotating crown is activated by means of a pedal, but the cutting system is fully automatic. The packaging operation is simple and can be carried out by a single person. The automatic model is equipped with motorized transport belts, product detection photocells, crown and transport rotation speed variators, and an automatic cutting system.

Catalogs

ORM
ORM
4 Pages
