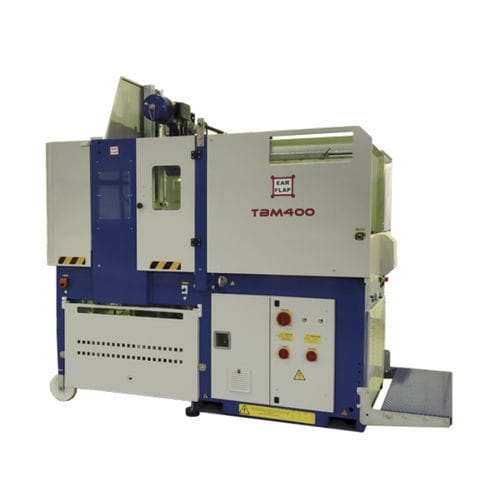

Automatic tray former TBM400

hot-melt gluecarton

They feed on a magazine of cardboard sheets one bu one slide to a forming station. In this process hot glue (hot melt) is applied to the closure flaps of the tray. Then, a mold comes down to form the tray on three sides. In the next phase, the duly grouped containers are pushed onto the tray that finally closes. Standard machine Capable of form most of the markets tray formats Frame  builded using 4 mm folded steel sheet Speed up to 2.050 trays/hour Consumable spare parts under ISO Standards Gear-motored Nylon former movement Regulation spindles for measures adjustments of trays and boxes Chain movement controlled by a highly precise servomotor Stacker with three positioning directions (Front, left side, right side) Pneumatic valves of the glue injectors installed through quick connectors Chassis and transportation systems, designed for easy mobility Magnetic doors 4 Pneumatic valves installed for mechanical motions and 3 pre-installed Vacuum pump Automatic water purge Standard machine variations Stainless steel 304 Other colors on request (It can add an extra cost) Hot Melt version Tray stacker Other carton dimensions
