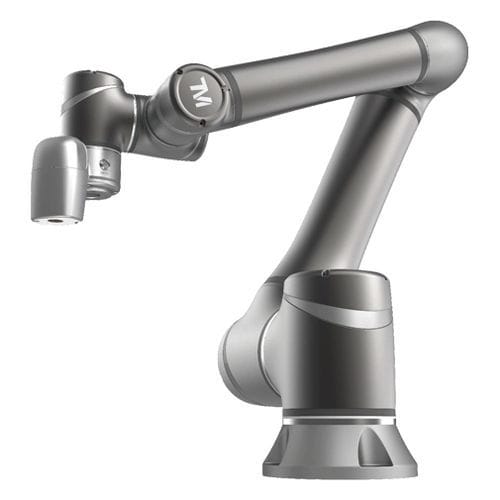

Cobot TM series

6-axishandlingpalletizing

TM Robot handling loads Equipped with a built-in vision system, which integrates into booth the hardware and software perfectly. You can lock selected axes to allow adjustment in defined planes and then fine tune to coordinates with easy editing of those coordinates within the programming package. TM Robot complies with the ISO 10218-1 & ISO 15066 human-robot co-operation safety requirements for collaborative robots. Standard model 6 axis (J1 to J6) Engines: AC Servo Motor Load (including clamp or claw) 14 Kg. Maximum reach 1100 mm Operational space (at technical sheet) Repeatability: +- 0,01 mm. Weight: 32,6 Kg. Power supply: 24V 1.5ª for control box and 24V 1.5A for tool Handling claw The robot works with a specific design claw for each use. Standard model 6 axis (J1 to J6) Engines: AC Servo Motor Load (including clamp or claw) 12 Kg. Maximum reach 1100 mm Operational space (at technical sheet) Repeatability: +- 0,01 mm. Weight: 33,3 Kg. Power supply: 24V 1.5ª for control box and 24V 1.5A for tool Handling claw The robot works with a specific design claw for each use.
