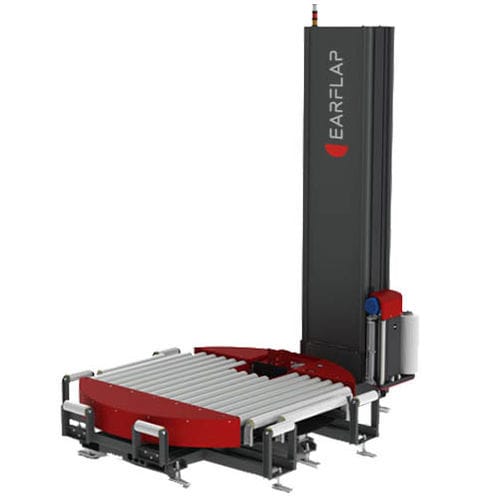

Turntable stretch wrapper TRM1500

automaticpalletwith motorized roller conveyor

Automatic turntable wrapper machine Automatic wrapping system based on a platform that rotates concentrically with the pallet. This model of wrappers does not need the presence of operators at the end of the cycle. In this model the input, positioning and output of the pallet is automatic, with the necessary interconnections with conveyors and other machines of the automated line. Standard machine Ear Flap Profile Powered film carriage with variable speed, placed sidewise Powered pre-stretch carriage 300% with anti-entanglement and roping system Load height detection by photocell (optional: detection by ultrasounds for black loads) Transmission to the turntable by V-belt Turntable with soft start and indexed stop and SCHNEIDER speed inverter 3ALL feature: clamping, cutting and dolly heat sealing Turntable with motorized rollers conveyor Optional: turntable with motorized 3 chains conveyot Wrapping cycles counter Independently adjustable top and bottom reinforcement wraps Independently adjustable roping system to reinforce the load Light and sound indicators for functioning signals and alarms Controlled by PLC SIEMENS Panel contra with touch screen Production up to 35 pallets/hour (variable depending on the characteristics of the load, number of wraps, etc.) 10 customizable programs; starting, upper and final wraps, overlapping lapse, roping, etc. Standard machine variations Turntable with motorized chains conveyor Powered top platen Top cover dispenser TDM1800 Special environments (Explosive, corrosion, sub-zero environments)
