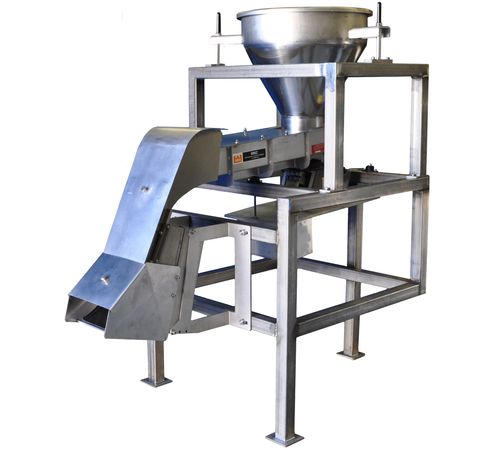

Vibrating feeder CentriFeeder VIB

gravimetricvibratory weighingwith mass flow meter

The CentriFeeder line of feeders provides accurate, real-time flow measurement, as well as near perfect control of flow rate and total. For blending applications, control the flow rate of an individual ingredient, or combine several CentriFeeders for near perfect recipe control. If you are controlling ingredients entering a batching process, use the CentriFeeder for controlling the total of one or more ingredients entered into the batch. The CentriFeeder with Integrated Vibratory Control accurately measures and controls the flow of any dry, free-flowing solid that can be transported via a vibratory conveyor. Through the use of a highly customizable touch screen HMI, a PID control loop is established that regulates the vibratory conveyor feeding our patented CentriFlow Meter. The outcome is an accurate, easily maintained, consistent flow that can be used for mixing, ratio control, or even recipe based blending. The CentriFeeder VIB works by integrating the conveying abilities of a vibratory conveyor with the supreme measurement power of a CentriFlow Mass Flow Meter. Product is fed into the hopper which sits above the vibratory conveyor. This product can be fed continuously or in shorter increments for batching. The product feeds down through the vibratory conveyor and finally, down through the CentriFlow Meter which is positioned directly after the vibratory conveyor. As product passes through the CentriFlow Meter, both the flow rate and total are measured. This data is used by the CentriFeeder VIB's electronics which creates a PID control loop by using the flow rate and totalization information to control the speed of the vibratory conveyor.
