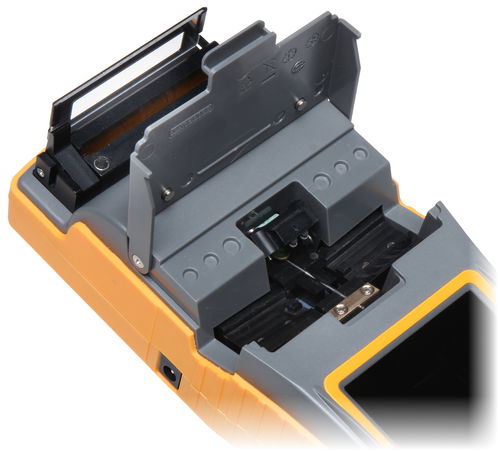

Fiber optic splicer EasySplicer

Fusion Splicer The EasySplicer is a Swedish made Fusion Splicer, designed for working daily with fiber optic installations. It´s small and handy to bring along to any kind of work. The construction is made very rugged and even if splicing should take place under good conditions (indoors) it is still designed to be used out in the field. Technical specification Splicing method: V-grove (cladding alignment) Fiber Types: SMF,MMF 50/125 µm fiber, 250 µm primary and 900 µm secondary coated fiber. Fiber Handling: Fiber holders, 2 pairs (250 and 900) Splice Programs: 2 pre-defined. SMF & MMF Typical splice Loss: 0.03dB SMF, 0.01dB MMF Typical Cycle time: 7s + 35s (splice cycle+ oven cycle) Sleeve Dimensions: Max 64mm length, 2-5mm diameter supported by oven. Communication: USB, mini usb plug. Memory: Internal 1MB, External SD-Card Monitor: LCD, color, 2,8″, 320×240 pixels Magnification: Camera 140x Operating Environment: 0-40°C, max 95% RH, non- Weight: 800g Power Sources: External power supply, 6V, 1.25A, 100-240VAC 50-60Hz, Build in Li-Ion battery pack Splicing Capacity: 60 splicing cycles Additional Features: Loss estimation, Fiber fault detection, SD-card for logging etc. The EasySplicer is truly a grand innovation for making Fiber optic Networks. It will revolutianry the ease to build such networks and it will cut the costs for the customers which will generate more work for the installers!
