Patented system with two industrial cameras mounted on the side of springs grinding machines, to detect grinding defects both on the top as well as on the bottom end of the springs. The system can also be used out of line.
Instrument for finding grinding defects on springs
Patented system with two cameras fitted on grinding machines to detect grinding defects on both the top and bottom ends of springs. The system can also be used for tests off-line.
Characteristics of the vision system

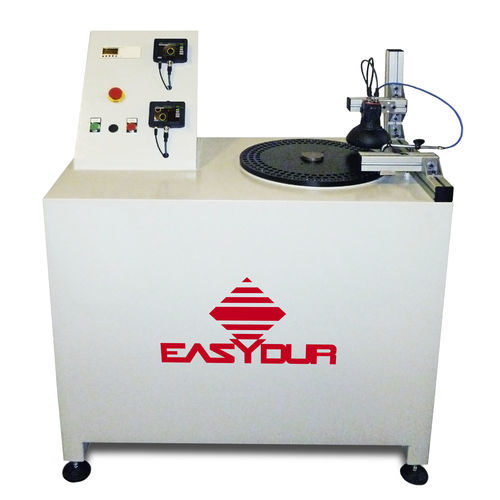

The system is able to recognise defects of the end, whether it is bent inward or outward, thanks to the two cameras, one positioned on top of the rotating disc and the other under it. The instrument is also equipped with a two-way sorter for separating good and faulty springs, and is able to analyse up to 6000 springs per hour.
Testing software
The work programs are managed by means of two touchscreen panels (one for each camera). The software allows setting of the tolerances, configuration of the ROI of analysis, creation of customised programs and storage of statistics.
