Industrial vision system TAB

for springs

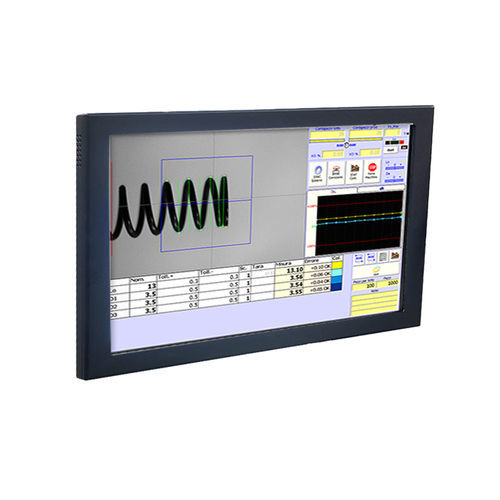

An innovative instruments for checking the entirety of springs production (100% checking, zero-defects target). It is capable of measuring and correcting both the length as well as the diameter of the springs. An innovative vision systems which allows to keep under control 100% of the production of springs. TAB can measure and correct both the length as well as the diameter of the springs, coil by coil. Thanks to the latest updates of our testing software, it is now possible to measure also the pitch between each coil of the spring. The system is a complete kit comprising a super high-definition camera, a very user-friendly touch screen industrial PC, an illumination system for setting the perfect contrast and all the needed cables (start, stop, eject) in order to interact with the springs former. It works in substitution to every comparator, improving not only the quality of production, but also the volumes. Production can be subdivided in up to 13 groups thanks to our internally-developed sorting systems, or integrating the system with the line’s existing sorting devices. The software forces the production to stop according to various criteria, such as: • The reaching of the programmed volume of production • After “X” produced springs with the wrong tolerance • Irregularities in the turning of the engine, and so on
