Compression testing machine FAT

fatiguedurabilitytensile strength

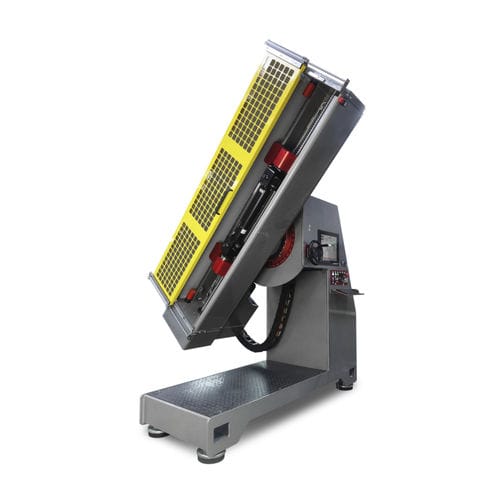

Electromechanical instrument for fatigue test, particularly suitable for tests on shock-absorbers/dampers. Measures forces in extension and compression and allows working at different angles, thanks to it rotating structure. This Dynamic Damper Testing Machine is compliant with Standard EN 13802. ELECTROMECHANICAL STRESS MACHINE FOR DAMPERS/SHOCK ABSORBERS REFERENCE STANDARD: EN 13802 FAT – Dynamic Damper Testing Machine, is an electromechanical machine for fatigue tests with brushless motor and ball screws, designed to measure forces in extension and compression, suitable for tests on Railways Dampers, and all other kinds of Shock Absorbers. The machine can work at different degrees of inclination, thanks to a rotating chassis, from vertical to horizontal position with automatic regulation of the working stroke, from 0 to 1000 mm. MAIN FEATURES • Rotation: ±90° (manual or automatic on request) • Load: 25kN • Min. division: 0.25 N • Speed: up to 500 mm/s • Stroke: 0 – 1000 mm • Resolution: 0.001 mm • Damper movement: sinusoidal • Programmable parameters: Amplitude, Frequency, Number of cycles
