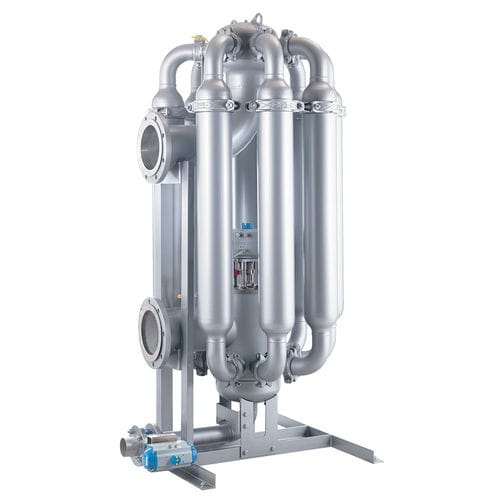

Pressure filtration unit AFR series

hydraulicbackwash

The AFR Industrial Filter is a unique, expandable circular design for increased capacity in a compact one-square-meter footprint. The AFR-Series is ideal for high volume, low viscosity applications with retentions as low as 2 microns. It also uses cleanable media that reduces life cycle costs and maximizes productivity. Core features Versatility with a modular design that enables future capacity and configuration flexibility. Single system Flow rates up to 2,000 gpm (454 m³/hr) Smooth pipe and nozzle connection transitions to avoid dead spots in the fluid stream and minimize pressure drop. A broad selection of filter media materials and retentions suitable for a wide range of applications. Proprietary 3-way, full-ported valves allow fast, frequent sequencing and maximum cleaning force during backwashing. Isolated top-to-bottom backwash flow ensures complete and efficient media cleaning while continuing to deliver filtered product downstream. Numerous automated backwash options for operator-free service and minimal backwash effluent (<2% of system volume). Available ACCUFLUX media dramatically increases filter surface area in the same footprint. Configured with an array of up to eight - 4" (101.8 mm) or 6"; (152.4 mm) body tubes surrounding a central cleaning valve
