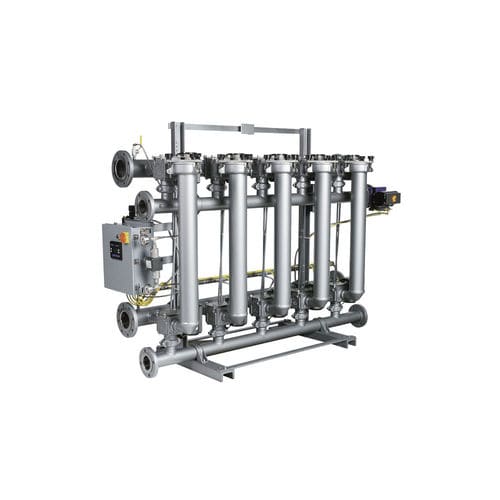

Cartridge filtration unit F series

for liquidsself-cleaningbackwash

The key to the F-Series versatility is its modular design that enables future capacity and configuration flexibility. It also uses cleanable media that reduces life cycle costs and maximizes productivity. The F-Series is optionally available in a 45° inclined design. This design offers a dual advantage. First, it improves ergonomics for maintenance personnel when removing filter elements. Second, it reduces the overall height of the system for use in spaces with limited ceiling clearance. Core features For liquid filtering applications that require unattended operation, maximum uptime, and solids removal from 1 to 1,700 microns, the F-Series family of filter systems delivers unbeatable performance. Versatility with a modular design that enables future capacity and configuration flexibility. Single system flow rates up to 3,000 gpm (681 m3/h). Smooth pipe and nozzle connection transitions to avoid dead spots in the fluid stream and minimize pressure drop. A broad selection of filter media materials and retentions suitable for a wide range of applications. Proprietary 3-way, full-ported valves allow fast, frequent sequencing and maximum cleaning force during backwashing. Isolated top-to-bottom backwash flow ensures complete and efficient media cleaning while continuing to deliver filtered product downstream. Numerous automated backwash options for operator-free service and minimal backwash effluent (<2% of system volume). Available AccuFlux media dramatically increases filter surface area in the same footprint. Inclined version available
