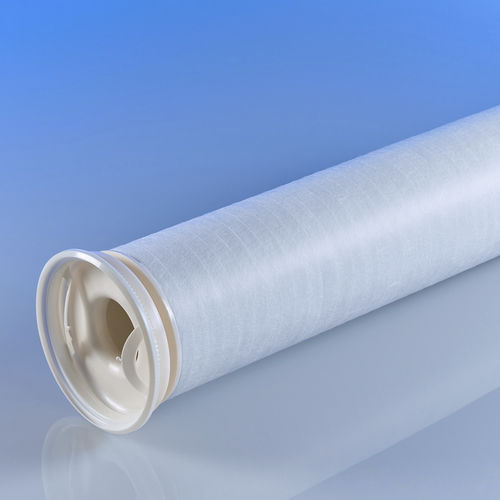

Liquid filter bag MAX-LOAD

polypropylenepolyesterdepth

MAX-LOAD coreless filter bags are manufactured from melt-blown media. Combined in a multi-graded configuration they provide an excellent dirt holding capacity. The rigid structure with a total media depth greater than 18 mm, provides a barrier to hard and metallic as well as deformable gel-type contaminants. Core features Rigid graded media structure with a total depth greater than 18 mm Available in polypropylene and polyester with matching end caps and seal rings to cover most processing conditions Fits in all Eaton standard size 01 and 02 restrainer baskets Produced through silicon-free process and procedure Patented SENTINEL seal ring provides 100% bypass-free filtration Thermobonded endcaps provide a strong, bypass-free and a seamless construction Outer seamless spunbond cover structure limits fiber migration to a bare minimum Optionally available with extra polyamide 10 µm outer mesh cover for extra safety in highly intermittent operating conditions Key MAX-LOAD coreless filter bag applications: Water treatment Bulk and fine chemicals Metal cleaning
