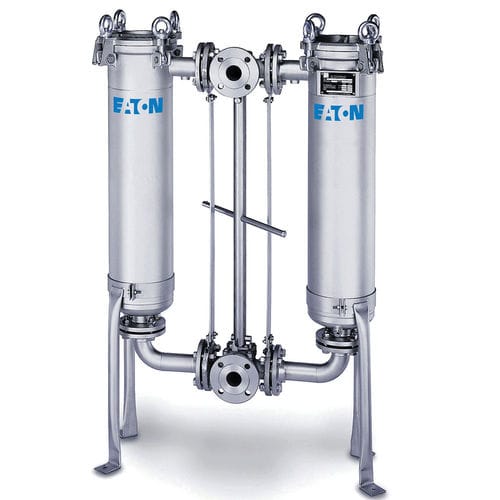

Multi-bag filter housing DUOLINE series

for liquidscarbon steelstainless steel

DUOLINE multi-bag filter housings are designed with two single bag filter housings fitted together at the inlet and outlet by a butterfly valve or ball valve. This increases flow capacity and allows the filtration process to run continuously even during filter bag change-outs. Core features Can be equipped with the most advanced TOPLINE single bag filter housing or the SIDELINE single bag filter housing for a greater range of applications System arrangement assures continuous flow rates. One unit can be taken off-line in sequence for filter bag change-outs without having to take the other filter unit off-line Swing bolt cover for quick, easy filter bag change-outs. The TOPLINE single bag filter housing features a domed cover. SIDELINE single bag filter housings covers’ feature an integrated ergonomic handle TOPLINE and SIDELINE models feature extended five year warranties and are designed in accordance with “AD 2000-Merkblätter”, EN 13445 and PED n Smooth, bead-blasted finish makes it easy to completely clean the interior Key DUOLINE bag filter applications: Automotive Food and Beverage Chemical Processing Paints, Inks, Resins and Coatings Electronics Petrochemicals Municipal Water Treatment Industrial Water Treatment
