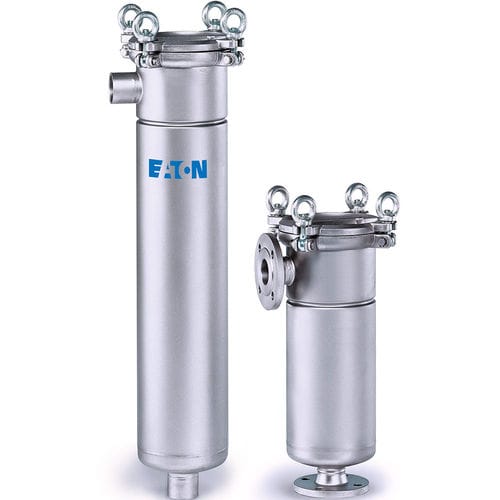

Bag filter housing FLOWLINE series
for liquidsstainless steelsteel

bag filter housing
bag filter housing
Add to favorites
Compare this product


Characteristics

Filter type
bag
Fluid
for liquids
Material
stainless steel, steel
Other characteristics
for the food and beverage industry
Operating pressure

10 bar
(145.038 psi)

Flow rate

Max.: 40 m³/h
(1,412.587 ft³/h)

Min.: 20 m³/h
(706.293 ft³/h)

Description

FLOWLINE single bag filter housing is a versatile filter available in stainless steel for 01 or 02 filter bag sizes. Multiple I/O configurations are available. Easy open cover features an integral handle, 1/4” vent or gauge ports and “no tools” eye bolts and ring nuts. Core features Side inlet piping connection Sizes for #01 single or #02 double-length filter bags Buna N cover seal Viton basket seal Stainless steel basket 2" NPT threaded or 2" RF 150-lb ANSI flanged connections Maximum operating pressure of 150 psi Maximum operating temperature of 250F Evacuation cover with swing bolt closures Heavy duty adjustable mounting legs Type 304 or 316 stainless steel construction
