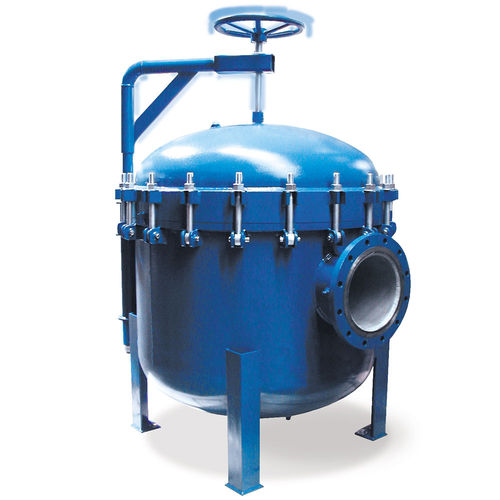

Multi-bag filter housing MAXILINE MBF HD series

for liquidsstainless steelcarbon steel

Eaton’s MAXILINE MBF HD multi-bag filter housing features a cost effective, hand wheel operated davit assembly cover and offers up to 24 filter bags in one multi-bag filter housing for very high flow rates and high dirt load applications. Core features Available in Type 304 stainless steel or carbon steel with standard Buna N o-rings, Viton o-rings are available as an option. Hydraulic assisted davit cover is available as an option. Tapered, electro-polished stainless steel perforated baskets. Unique 3-point hold down ensures a high-quality seal between each filter bag and the housing body. A supplied special tool ensures, simple effective operation. Positive o-ring sealing provides reliable operation. Available in seven sizes for 3 through 24 standard size 02 double length filter bags. Key MAXILINE MBF HD Applications: Automotive Food and Beverage Chemical Processing Paints, Inks, Resins and Coatings Electronics Petrochemicals Municipal Water Treatment Industrial Water Treatment Pulp and Paper Pharmaceutical Lubricants, Metalworking Fluids Solvents
