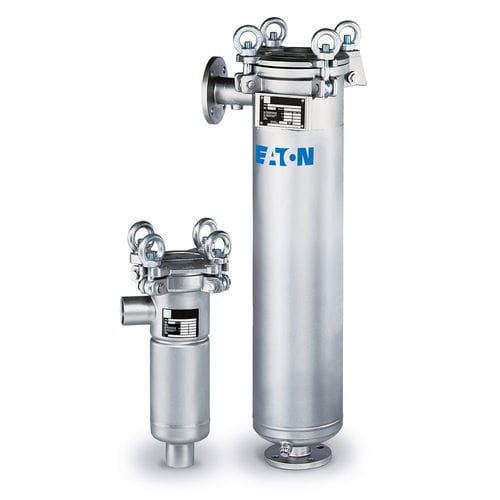

Single-bag filter housing SIDELINE series

for liquidsstainless steelfor the food and beverage industry

A SIDELINE bag filter housing vessel from Eaton is a full-featured investment-cast filter vessel with an ASME Code Stamp. A bead, not sand, blasted finish that makes cleaning complete and a cover that can be easily adapted to different opening directions are among SIDELINE’s many value added features. Units come standard with filter bag size 01 and 02 stainless steel restrainer baskets. For smaller flow rates also available in the MINILINE version in sizes 03 and 04. Core features Side inlet piping connection Sizes for #01 single or #02 double-length filter bags Unique two-weld design Buna N seals standard Stainless steel basket 2" or 3" RF 150-lb ANSI flanged connections Maximum operating pressure of 150 psi Maximum operating temperature of 400°F with Viton seals Evacuation cover with swing bolts Adjustable mounting legs ASME code stamp Type 304 or 316 stainless steel construction Key SIDELINE Applications: Automotive Food and Beverage Chemical Processing Paints, Inks, Resins and Coatings Electronics Petrochemicals Municipal Water Treatment Industrial Water Treatment Pulp and Paper Pharmaceutical Lubricants, Metalworking Fluids Solvents
