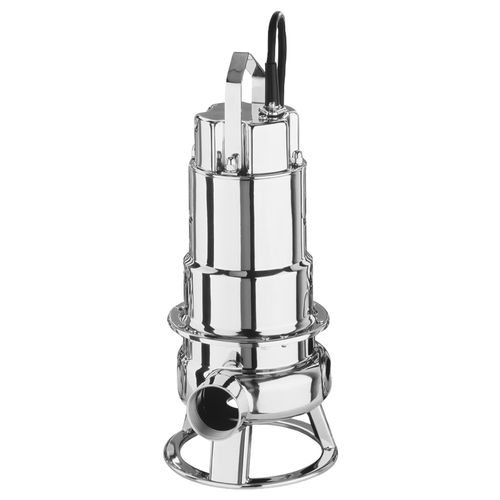

Wastewater pump D series slurryelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater, slurry
- Operation
- electric
- Priming
- submersible
- Technology
- impeller
- Mobility
- stationary, mobile
- Domain
- industrial, sanitary
- Applications
- handling, drainage, lifting
- Material
- stainless steel
- Voltage
- 400 V, 230 V
- Protection level
- IP68
- Other characteristics
- large, mobile
- Flow
54 m³/h
(1,906.992 ft³/h)- Head
15.7 m, 20 m
(51'06" , 65'07" )- Power
Max.: 2.2 kW
(2.99 hp)Min.: 0.55 kW
(0.75 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. Available with two versions for piping connection. Suitable for domestic applications and large industrial wastewater lifting installations
AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. The DW - DW VOX electric pump has two versions for connection to pipes:
• Threaded for DW - DW VOX
• Flanged for DWF - DW VOXF
For further technical information see the Databook
• Evacuation of civil and industrial wastewater
• Drainage of wells or excavations
• Drainage of underwater areas
• General Handling of liquids, including those with solid and/or filamentary substances in suspension
• Emptying of seepage water
• Handling of dirty wastewater (sanitary services)
• Emptying of cesspits
