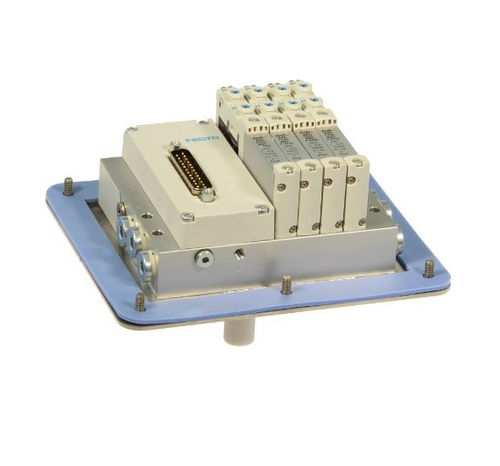

Valve terminal Pneumapole-L 4-fold size 10 Multi-pin

Festo VTUG Pneumapole IP66 and IPx9 transfer plate In cooperation with Festo, Ebora Process Automation has developed a pneumatic pneumapole transfer plate for the Festo VTUG valve terminals. This Pneumapole has been developed for use in a hygienic environment. It is a worthy successor to the CPV valve terminals with pneumapole transfer plates with more functionality and ease. Number of valve positions: 4 Air passage: size 10 Electrical connection: Multi-pin Version: Lying down IP Protection class: IP66 and IPx9 IP Protection category The Pneumapole meets the requirements for IP66 and IPx9 (IEC 60 529 | EN 60 529) Protection categories. More information about these Protection categories can be found here. Features Festo VTUG with Pneumapole: Number of valve positions: 4, 8, 12, 16 and 24 Max. possible number of 3/2-way functions (2 per valve position): 48 Max. possible number of 5/2-way or 5/3-way functions: 24 Pneumapole versions: VTUG10 (standing and lying down version) 380 l/min (3, 4 and 6* mm push-in, nickel-plated brass) VTUG14 (standing and lying down version) 700 l/min (4, 6 and 8* mm push-in, nickel-plated brass) VTUG18 (standing version) 1300 l/min (6, 8 and 10* mm push-in, nickel-plated brass) * Standard Electrical connection: 24 VDC
