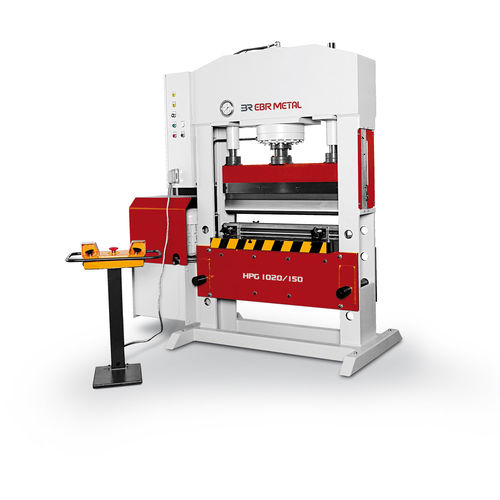

Hydraulic press HPG series
forming

hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming
Force

100 tf, 150 tf

Stroke

300 mm
(11.811 in)

Table width

500 mm, 600 mm
(20 in, 24 in)

Table length

1,020 mm, 1,520 mm
(40 in, 60 in)

Max. pressure

244 bar, 263 bar
(3,539 psi, 3,814 psi)

Working speed

5 mm/s

Return speed

10 mm/s

Approaching speed

9 mm/s

Hydraulic pump power

7.5 kW, 11 kW

Weight

1,900 kg, 2,400 kg, 2,500 kg, 3,100 kg
(4,189 lb, 5,291 lb, 5,512 lb, 6,834 lb)

Overall length

2,110 mm, 2,630 mm
(83 in, 104 in)

Overall width

1,000 mm
(39 in)

Overall height

2,275 mm, 2,450 mm
(90 in, 96 in)

Description

Now, garage type presses is easier to use with manometer, adjustable bottom table and table up-down movement. More safety with two hand control and foot pedal. 100 or 150 ton press power. 300 mm stroke. 5 mm/sec working speed. Different sizes and weight. Hardened blades Steel construction welded frame 5 face prism Bottom table with T-slot Stepless stroke adjustment Manometer Adjustable bottom table Table up-down movement attachment Adjustable pressure valve Adequate work space for large sheets Two hand control
