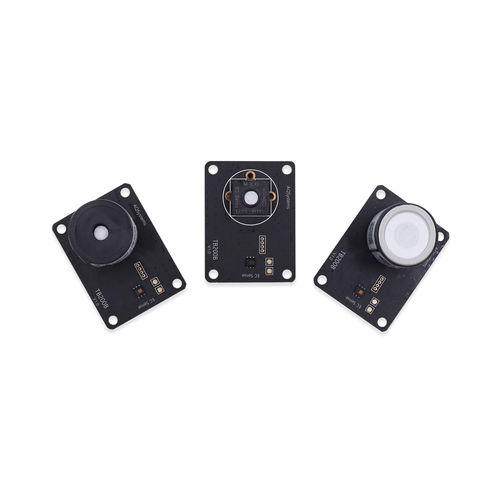

Electrochemical gas sensor module TB200B-ES series

for air quality monitoringwith temperature sensorwith humidity sensor

The SMELL Gas Sensor Module TB200B is the perfect combination of a state-of-the-art sensing device based on the solid polymer sensor technology with a sophisticated circuit board. The single gas sensor offers a simple and easy-to-use solution for your application. As a matter of fact, it makes using a gas sensor easy by transforming a small sensor signal into a standardized digital output. Why would I use the EC Sense Gas Sensor Module TB200B? While you can focus on your area of expertise you do not have to worry about the sensor technology and moreover the tedious work of calibration. You can simply integrate the SMELL Gas Sensor Module TB200B into your device. Furthermore, the TB200B Gas Sensor Module has a standard UART digital output. It detects gas, temperature and humidity and easily receives all the data simultaneously. In addition to that it has a low power consumption fitting for battery and IoT applications as well as a small footprint. FEATURES: • Detects single gas + temperature + humidity • Long lifetime > 5 years • Anti-poisoning • Fast response time + stable zero return time • Easy-to-use calibration • UART digital signal output interface (Standard or Modbus-RTU) • 3.3 to 5V DC power supply • Low power consumption and sleeping mode • Suitable for Indoor and Outdoor environment (Works in -40° to +55°C) • Independent temperature + humidity digital sensor output • RoHS approved environmental design SPECIFICATIONS: • Measurement Range: 0 – 10ppm • Resolution: 0.1ppm • Response Time: T90 < 20sec. • Output: 3.3V UART digital signal • Working Voltage: 3.3 – 5.5V DC • Weight: < 15g • Dimensions (with sensor): 40 x 30 x 12 mm
