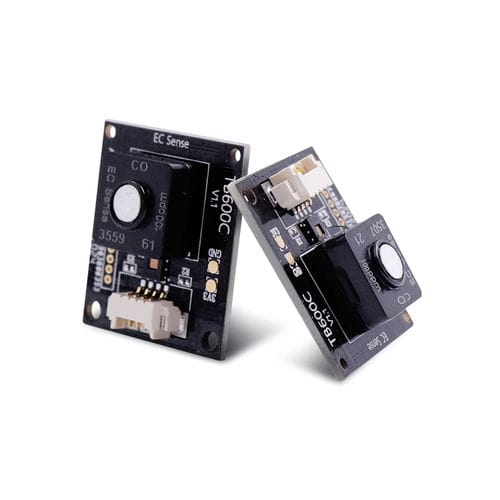

Carbon monoxide gas sensor module TB600B-CO-100
electrochemicalfor air quality monitoringoutdoor

carbon monoxide gas sensor module
carbon monoxide gas sensor module
carbon monoxide gas sensor module
carbon monoxide gas sensor module
Add to favorites
Compare this product


Characteristics

Gas type
carbon monoxide
Technology
electrochemical
Applications
for air quality monitoring
Other characteristics
outdoor
Measuring range (ppm)

Max.: 100 unit

Min.: 0 unit

Description

The CO Carbon Monoxide Gas Sensor Module TB600C is the perfect combination of a state-of-the-art sensing device based on the solid polymer sensor technology with a sophisticated circuit board. The single gas sensor offers a simple and easy-to-use solution for your application. As a matter of fact, it makes using a gas sensor easy by transforming a small sensor signal into a standardized digital output. Why would I use the EC Sense Gas Sensor Module TB600C? While you can focus on your area of expertise you do not have to worry about the sensor technology and moreover the tedious work of calibration. Because you can simply integrate the CO Gas Sensor Module TB600C into your device. Furthermore the TB600C Gas Sensor Module has a standard UART digital output. It detects gas, temperature and humidity and easily receives all the data simultaneously. In addition to that it has a low power consumption as well as a small footprint. FEATURES: • Detects single gas + temperature + humidity • Long lifetime > 5 years • Anti-poisoning • Fast response time + stable zero return time • Easy-to-use calibration • UART digital signal output interface (Standard or Modbus-RTU) • 3.3 to 5V DC power supply • Low power consumption + sleeping mode • Suitable for Indoor + Outdoor environment (Works in -40° to +55°C) • Independent temperature + humidity digital sensor output • RoHS approved environmental design SPECIFICATIONS: • Measurement Range: 0 – 100ppm • Resolution: 0.1ppm • Response Time: < 3sec. (T50 < 40sec. / T90 < 80sec.) • Output: 3.3V UART digital signal • Working Voltage: 3.3 – 5.5V DC • Weight: 3.1g • Dimensions (with sensor): 23 x 25.5 x 10.2 mm
