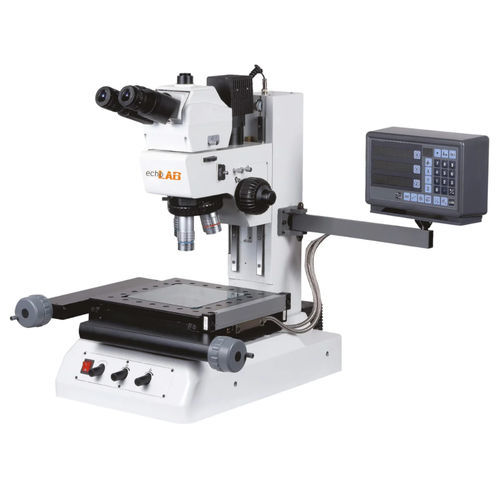

Measuring microscope MM 900opticallaboratorytrinocular
Add to favorites
Compare this product
Characteristics
- Type
- optical
- Technical applications
- laboratory, measuring
- Microscope head
- trinocular
- Quality of the objectives
- plan achromatic
- Observation technique
- polarization
- Other characteristics
- 3-axis
- Magnification
50 unit, 100 unit, 200 unit, 400 unit
- Resolution
1,000 nm, 5,000 nm
- Weight
45 kg
(99.2 lb)
Description
Optical system
CCIS
Eyepiece
WF lox (ø25mm)
WF 1 Ox (ø20mm) with crosshair 0.01 mm/div
Plan achromatic objectives long working distance
PL L 5x/O.15 WD=4400mm
PL L IOW030 WD=3400mm
PL L 20W035 WD=3000mm
PL L 40WO.35WD=30.OOmm
Inclination from 00 to 450
Interpupillary distance 50mm-75mm
Diopter adjustable ±5
Nosepiece
Quadruple back ball bearing inner locating
