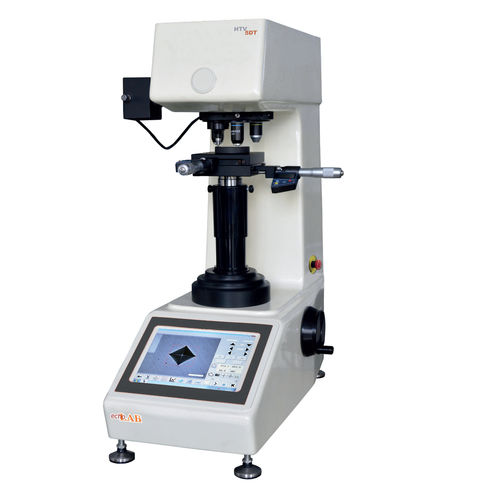

Vickers hardness tester HTV xxDT series

benchtopfor coatingsfor non-ferrous metals

>>Automatic Vickers hardness tester adopts the integrated design of panel computer with Windows 7 operating system. CCD image acquisition system, show the indentation image directly on the touch screen and automatically detect the Vickers hardness value. >>All testing parameters can be selected on the side panel computer. User friendly with touch screen. >>CCD image acquisition system, shows the image clearly and detects the hardness value by touching the screen. >>Automatic recognition and shifting between the objective and the indenter, automatically get the Vickers hardness value. >>Hardness scale conversion function. >>With USB, VGA and LAN interfaces, the hardness measurement can be print out by USB interface printer. >>Automatic data save, generate the hardness-depth curve and save as WORD or EXCEL document. >>With motorized X-Y test table, automatic focusing and automatic measuring, it is the fully automation of Vickers hardness testing. Application >>Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals, glass, ceramics, agate, precious stones, thin plastic sections etc. Reference standard >>ISO 6507, ASTM E92, JIS Z2244
