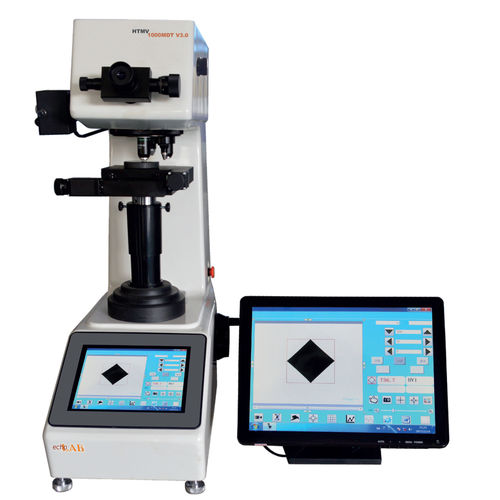

Micro Vickers hardness tester HTMV 1000MDT V3.0

benchtopfor plasticsfor non-ferrous metals

>>Automatic Micro Vickers hardness tester adopts precision optics, high mechanical features and perfect indentation for high accuracy measurements. With digital measuring eyepiece directly shows the hardness value and show on the screen, moreover test mode, test force, indentation length, dwell time, test numbers and conversion scale can be displayed. Test results can be saved for checking or be printed out by printer. >>All the testing parameters can be selected on the side touch screen panel computer >>CCD image acquisition system With two indenters and three objectives, automatic recognition and shifting between objective and indenter, automatically get the Vickers or Knoop hardness value >>Hardness scale conversion >>With USB, VGA and LAN interfaces, the hardness measurement can be printed out by USB interface >>Automatically save the measuring data, generate the hardness-depth curve and save as WORD or EXCEL document >>Motorized X-Y test table, automatic focusing and automatic measuring Application >>Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals, glass, ceramics, agate, precious stones, thin plastic sections etc. Reference standard >>ISO 6507, ASTM E384, JIS Z2244
