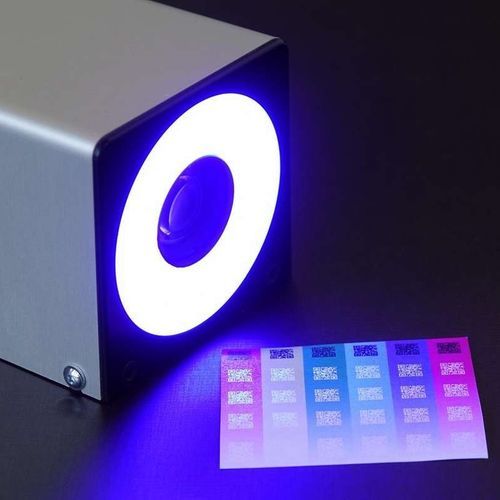

Color image processing system E°CAMBOX

compactimage acquisition

Eckelmann has developed the E°CAMBOX as a powerful multitool for machine vision. The compact image processing system consists of a camera, optics and lighting. Thanks to the compact and robust housing (IP54), the E°CAMBOX can be easily integrated into the machine, whether mounted statically or travelling. It is ideally suited for implementing a wide range of standard machine vision tasks in the shortest possible time. The simple integration into control architectures based on the E°EXC controller family and E°Tools HMI user interfaces creates consistent solutions with high added value for the automation of your application. The E°CAMBOX supports the following functions, among others: Capture and saving of single frames Live image acquisition (crosshairs, mark contour and evaluation area can be displayed) Position compensation Barcode and data matrix code reading (forklift code PDF417, Code 2/5, Code 128, Code 39, Code 93, EAN-13) Automated calibration and adjustment to the tool or machine coordinate system
