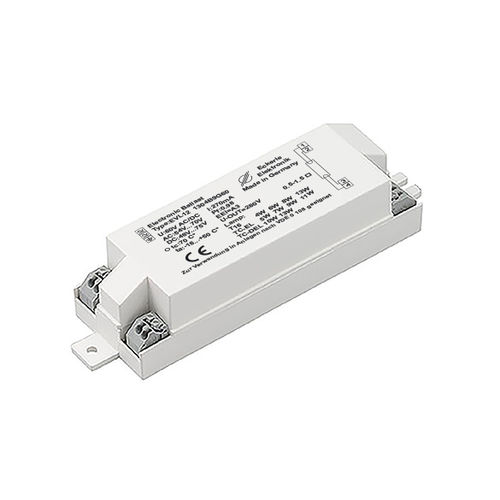

Electronic ballast EVL12 1304 B9G 60

Item number: 7101102106 Application Operation of low-pressure discharge lamps Description Compact ballast unit for 24W - T5 Technical data Special feature - compact design Dimensions (L x W x H in mm) - 144x41x32 Assembly - fixing holes Temperature range (° C) - -18 to +50 Protective circuit - no-load protection, short-circuit protection, switch-off in the event of a defective lamp emergency light - yes Input voltage (V) - 54-70VAC/48-75VDC Dimming range (%) - - Protection class - SK1 Protection class - IP20 Certification - CE Burst voltage (kV) - 4 Shock resistance (kV) - 2 Service life (h) - 50.000 @ tc=75°C Power (W) - 13 Lamp type - 1x T16 4,6,8,13W;1x TC-EL 5,7,9,11W; 1x TC-DEL - 10,13W
