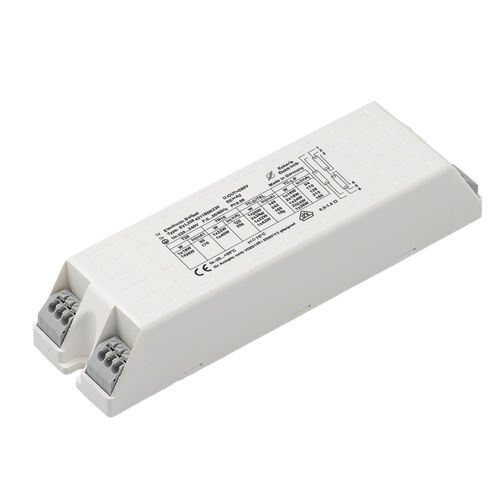

Electronic ballast EVL258 4211 B5R 230

Item number: 7901200763 Application Operation of low-pressure discharge lamps Description Compact ballast unit for max. 48 W Technical data Special feature - compact design, multiwatt device Dimensions (L x W x H in mm) - 150,5x41,5x30 Assembly - fixing holes Temperature range (° C) - -20 to +50 Protective circuit - no-load protection, short-circuit protection, switch-off in the event of a defective lamp emergency light - no Input voltage (V) - 195-245VAC / 176-276VDC Dimming range (%) - - Protection class - SK1 Protection class - IP20 Certification - CE, VDE Burst voltage (kV) - 2 Shock resistance (kV) - 1 Service life (h) - 50.000 @ tc=75°C Power (W) - 42 Lamp type - 1x T26 18W; 1x T26 36W; 1x TR16 22W; 1x TR16 40W; 1x TC-D/TEL 26W; 2x TC-D/TEL 26W; 1x TC-D/TEL 32W; 1x TC-D/TEL 42W; 1x TC-L/F 18W; 2x TC-L/F 18W; 1x TC-L/F 24W; 2x TC-L/F 24W; 1x TC-L/F 36W
