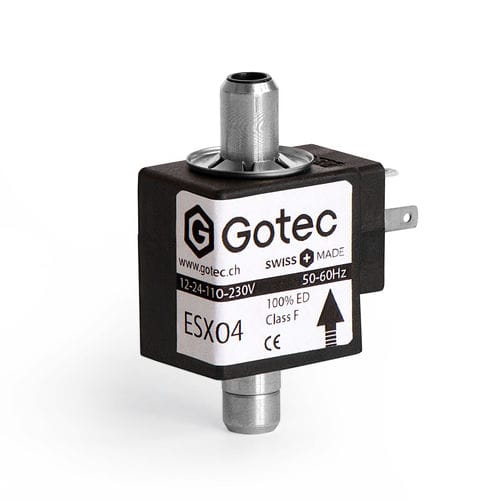

Oil pump ESX04

electricpistonindustrial

Application Electromagnetic pumps are used to transport neutral and aggressive liquids. They feature a simple structure and excellent reliability. They have been performing brilliantly in all kinds of applications such as air-conditioning technology, oil transport technology, stage technology and also medical technology. They also offer users a wealth of important advantages in the cleaning and food industry: • Maintenance-free • Automatic pressure limitation • No shaft seals • Robust, industrial designs • Suitable for permanent operation • Tiny footprints Description The ESX04 is a piston pump. Spring-loaded valves on the intake and output side allow the pump to aspirate easily during operation. It is possible to operate the pump not only at mains frequency, but also through frequency regulation or pulsed control. Technical data Max. delivery volume (l/h) - 5 Max. head height (m) - 0,3 Differential pressure (bar) - 0,3 Viscosity range approx. (cSt.) from - 1 Viscosity range approx. (cSt.) to - 600 Min. filtration (µm) - 100 Ambient temperature approx. (°C) - 1-50 Medium temperature approx. (°C) - 55 Diameter of connections (mm) - stainless steel 7 Seals / valves - EPDM Max. power consumption (VA) - 5 Weight approx. (gr.) - 35 Available voltages (V) - 12, 24, 110, 230 Electrical connection - DIN-plug or cable connection Dimensions (L x W x H in mm) - 33x17,3x43,1
