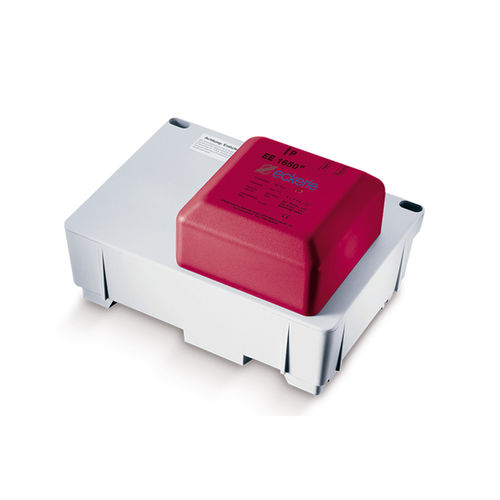

Centrifugal pump EE1650M

watercondensateair

Item number: 9005401001 Application This compact unit with integrated float is intended for use with units that are only equipped with a condensate collection tray, such as: air conditioning convectors, air conditioning cabinets, built-in units and water collection consoles. During operation, it must be ensured that no liquid runs via the pump! Description The delivery system is equipped with two floats that operate separately. The working float switches the pump on and off, depending on the fill level (with a run-on time). The alarm float toggles the normally-closed contact potential-free. An integrated non-return valve prevents the backflow of condensate into the container. Technical data Drive - Swiss drive inside For air conditioning units up to (kW) - 30 Pump module (L x W x H in mm) - 244 × 174 × 144 Electrical data - 230 V, 50/60 Hz, 40 VA Max. delivery volume (l/h) - 32 Tank capacity (l) - 2 Alarm circuit - max. 230 V, 8 A (ohmic load) NO/NC normally open/normally closed Switching points (mm) - Alarm: max. 23 Start: 20 ±1 Stop: 15 ±1
