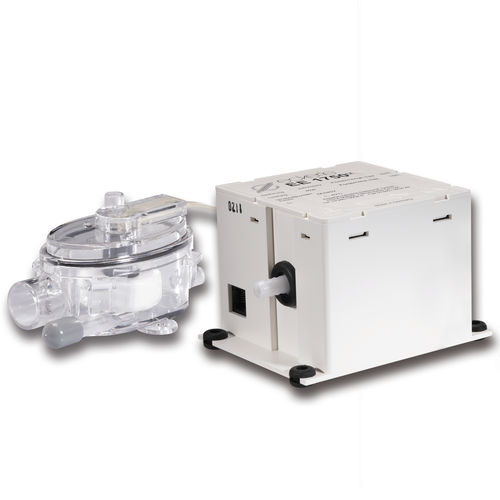

Centrifugal pump EE1750M

condensateelectricindustrial

Item number: 9005801001 Application The EE1750M condensate pump equipped with a float control is designed for use in units that have a condensate collecting container with drainage pipe connection, such as cassette, ceiling-mounted and split units, as well as air conditioning convectors. Description The EE1750M comprises a pump and a float module. The three-stage float switch controls the pump. If the maximum permissible level of condensate is exceeded, the float triggers an alarm. The float module is connected directly to the outflow pipe of the condensate vessel or to the end of the outflow line. The supplied package includes the pump, float switch, the vibration dampers and fastening materials. Technical data Drive - Swiss drive inside For air conditioning units up to (kW) - 30 Pump module (L x W x H in mm) - 100 × 81,5 × 67 Electrical data - 230 V, 50/60 Hz, 40 V Float module (L x W x H in mm) - 82 × 39 × 39 Max. delivery volume (l/h) - 32 Max. head height (m) - 3 Alarm circuit - max. 230 V, 8 A (ohmic load) NO/NC normally open/normally closed Switching points (mm) - Alarm: max. 23 Start: 20 ±1 Stop: 15 ±1
