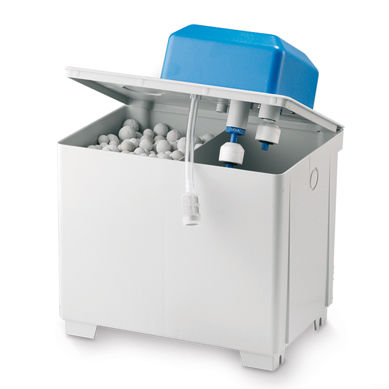

Piston pump EKF15-25NB series

condensateelectricindustrial

EKF15-25NB - Condensate pump with neutralisation Item number: 02034 Application Condensate pumping system of high technical quality with neutralisation. Especially suitable for small systems up to 25 kW (with additional NB50 container which can be expanded for systems up to 100 kW). Description Low-noise piston pump with large delivery height (up to 10 m) Electronic controls with run-on time to reduce switching frequency Minimised contact wear on the working and alarm float thanks to low voltage Potential-free switching contact (up to 8 A Ohmic load) Built-in suction filter and non-return valve Can also be used for oil-powered condensing boiler systems with expansion set (Art. No. 23014) Technical data Drive - Swiss drive inside Pump module (L x W x H in mm) - 244 x 174 x 261 Electrical data - 230 V / 50 Hz, 40 VA Max. delivery volume (l/h) - 14 Tank capacity (l) - 6 Alarm circuit - max. 230 V, 8 A (ohmic load) NO/NC normally open/normally closed Special feature - With extension set (code no. 23014) also suitable for oil condensing boilers for gas condensing systems up to (kW) - 100 Weight approx. (gr.) - 1,6 (with granulate)
