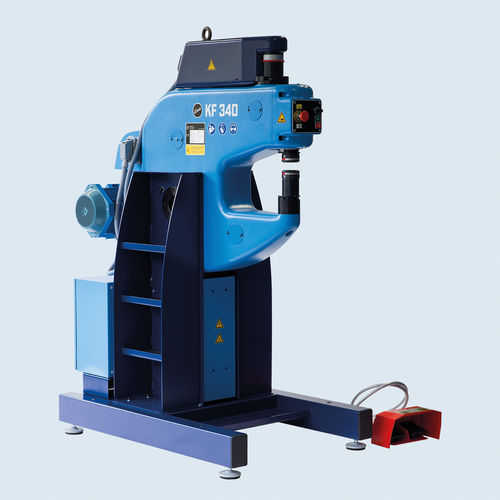

Sheet metal forming machine KF 340
steelmotor-drivenstraightening

Sheet metal forming machine - KF 340 - ECKOLD technics GmbH & Co. KG - steel / motor-driven / straightening
Sheet metal forming machine - KF 340 - ECKOLD technics GmbH & Co. KG - steel / motor-driven / straightening
Add to favorites
Compare this product

Characteristics

Product handled
sheet metal
Treated material
steel
Operating mode
motor-driven
Other characteristics
straightening, shrinking

Description

Sheet metal forming machine Kraftformer KF 340 Universal forming machine for stretching, shrinking, reforming, curving, planishing, flattening, doming and straightening. The ECKOLD Kraftformer KF 340 is part of the medium-force Kraftformer range with motor drive. Depending on the workpiece to be machined, the operator can adjust the number of working strokes to any value between 220 and 600 strokes per minute continuously. Low speeds are particularly suitable for shrinking, stretching and for straightening and precision finishing. Thanks to the high stroke rate, the machine is also widely used for doming (dishing) and planishing, boosting productivity. This Kraftformer is capable of machining steel sheets of up to 3 mm in thickness! For our Kraftformers, we offer a wide range of tools (tools are not included in the scope of delivery of this machine). Max. forming capacity Steel 400 N/mm²: 3.0 mm Aluminium 250 N/mm²: 4.0 mm Inox 600 N/mm²: 2.0 mm Contact us for a customised offer, tools included!

VIDEO
