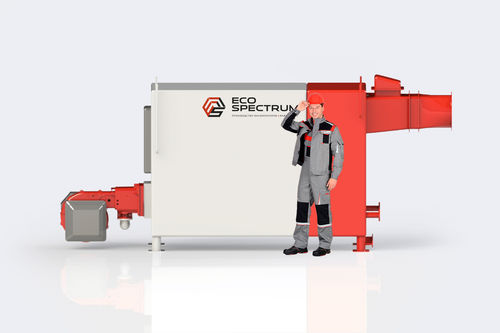

Superheated water boiler GEOTHERM WGB (3P) 0,63

gasfuel oilwater tube

– Designed for hot water producing – Focused on heat supply system of industrial and domestic facilities – Three time-temperature chart 70-95 °C; 70-110°C; 70-150°C – Capacity from 0,25 to 15,0 MW The fundamental difference between GEOTHERM WGB (3P) and GEOTHERM WGB (P) series boilers; GEOTHERM WMB; GEOTHERM WGB(V) is that the exhaust gases after the combustion of the burner the flue gases turn around in the furnace, pass through the fiston, turn around again and pass through the convective surface. The main advantage of this series of boilers is that they can be used to replace old equipment during the reconstruction of boiler rooms, because boilers of the GEOTHERM® WGB (3P) series have a small overall dimension in length. A small overall dimension along the length is achieved by the fact that the convective surface is located above the boiler furnace, and not behind it, as in the boilers of the GEOTHERM® WGB (P) series. Сharacteristics: Boiler model - 0,63 Calorific value - 630 kW Water temperature Boiler output - 95 °C Boiler input - 70 °C Boiler efficiency Gas - 94,2 % Diesel - 91,9 % Fuel consumption Gas - 66,7 H m3/h Diesel - 59 kg/h Flue gas temperature Gas - 144 °C Diesel - 188 °C Boiler aerodynamic resistance (without burners) - 350 Pa Hydraulical resistance - 0,15 MPa Water strength pressure - 0,7 MPa Boiler water flow rate - 21,7 t/h Nitrogen oxide emission factor Gas - 0,08 g/m3 Diesel - 0,16 g/m3 Range of control - 30-100 % Boiler weight - 1770 kg Boiler volume - 0,34 m3 Heat surface area - 30 m2
