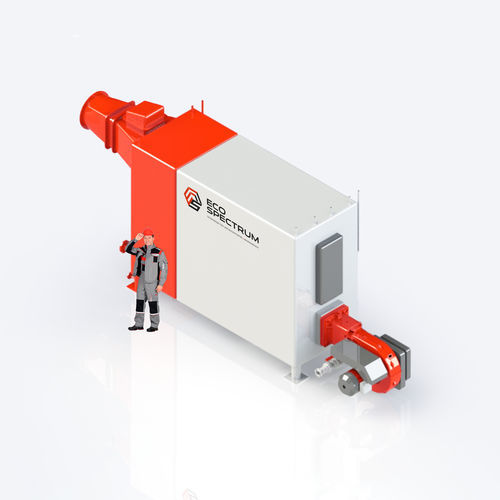

Superheated water boiler GEOTHERM WGB (3P) 15

natural gasfuel oilwater tube

PRODUCT DESCRIPTION – Designed for hot water producing – Focused on heat supply system of industrial and domestic facilities – Three time-temperature chart 70-95 °C; 70-110°C; 70-150°C – Capacity from 0,25 to 15,0 MW The fundamental difference between GEOTHERM WGB (3P) and GEOTHERM WGB (P) series boilers; GEOTHERM WMB; GEOTHERM WGB(V) is that the exhaust gases after the combustion of the burner the flue gases turn around in the furnace, pass through the fiston, turn around again and pass through the convective surface. The main advantage of this series of boilers is that they can be used to replace old equipment during the reconstruction of boiler rooms, because boilers of the GEOTHERM® WGB (3P) series have a small overall dimension in length. Сharacteristics: Boiler model - 15 (115°C) Calorific value - 15000 kW Water temperature Boiler output - 115 °C Boiler input - 70°C Boiler efficiency Gas - 93 % Diesel - 91,1% Fuel consumption Gas - 1608,1 H m3/h Diesel - 1394,3 kg/h Flue gas temperature Gas - 158,5 °C Diesel - 194 °C Boiler aerodynamic resistance (without burners) - 2500 Pa Hydraulical resistance -0,09 MPa Water strength pressure - 0,9 MPa Boiler water flow rate - 161,2 t/h Nitrogen oxide emission factor Gas - 0,08 g/m3 Diesel - 0,16 g/m3 Range of control - 30-100 % Boiler weight - 22000 kg Boiler volume - 2,1 m3 Heat surface area - 383,6 m2
