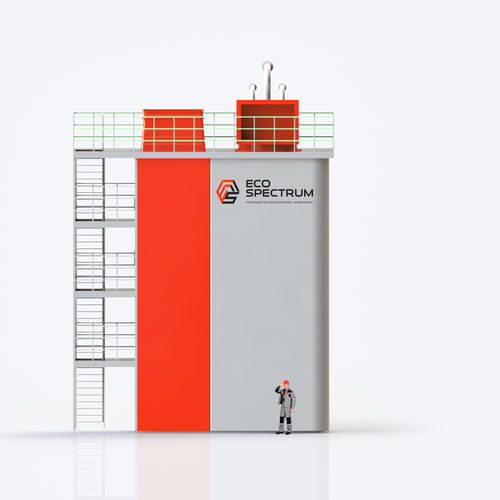

Hot water boiler GEOTHERM WGB (V) 68,9

gaswater tubevertical

PRODUCT DESCRIPTION –GEOTHERM ® WGB (V) series boilers are designed to produce hot water. Boilers are focused on heat supply of industrial and domestic facilities. GEOTHERM ® WGB (V) series boilers are manufactured with three temperature schedules 70-95 °C; 70-110 °C; 70-150 °C. GEOTHERM ® WGB (V) series boilers are produced with a capacity from 35 to 68.9 MW. The fundamental difference between the boilers of the GEOTHERM ® SPI (M) series from the boilers of the GEOTHERM WB(P); GEOTHERM MEDIA; GEOTHERM WEB(3P) series is that the boiler pipe system has a vertical design. The main advantage of boilers of this series is that at high power boilers take up little space when installed on the foundation. This makes it possible to build high-capacity boilers on relatively small areas. Сharacteristics: Boiler model - GEOTHERM ® WGB (V) 58,2 (150°C) Calorific value - 68900 kW Water temperature Boiler output - 150 °C Boiler input - 70°C Boiler efficiency Gas - 92 % Diesel - 88,9% Fuel consumption Gas - 7370 H m3/h Diesel - 6928 kg/h Flue gas temperature Gas - 139 °C Diesel - 161 °C Boiler aerodynamic resistance (without burners) - 3000 Pa Hydraulical resistance -0,2 MPa Water strength pressure - 1,6 MPa Boiler water flow rate - 740 t/h Nitrogen oxide emission factor Gas - 0,08 g/m3 Diesel - 0,16 g/m3 Range of control - 30-100 % Boiler weight - 75000 kg Boiler volume - 10 m3 Heat surface area - 2136 m2
