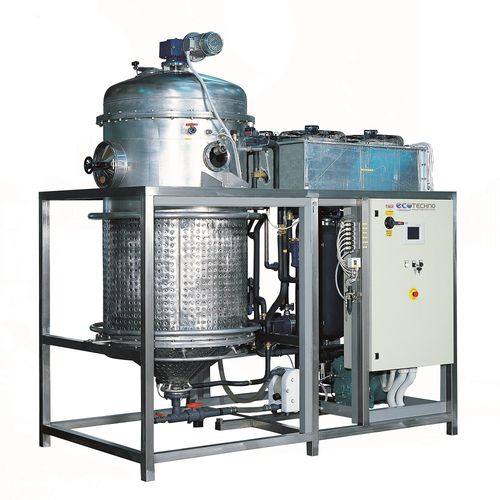

Vacuum evaporator ECO VR HP

laboratoryfor the food industrylow temperature

Distillation throughput from 20 to 125 L/hour Low temperature vacuum evaporator with heat pump, powered with electrical energy with internal scraper. Specially configured to treat encrusting water-based solutions, it has an internal scraper to remove fouling and to concentrate up to crystallization fouling wastewater, saline water and high density waters. To be installed wherever a strong concentration is required. Suitable for ZLD installation, eluates from resin regeneration, RO rejects, food & beverage (electropolished version available on demand), chemical & pharmaceutical, cosmetic and plant extracts, glass industry (industrial and art glass), paint and printing industry, packaging. Detachable boiling vessel, external heat exchanger covering the boiling shell, internal scraper controlled by gear motor, large manway and sight glass with illuminator, built-in condensation section, full automatic operation with PLC and touch screen. Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.
