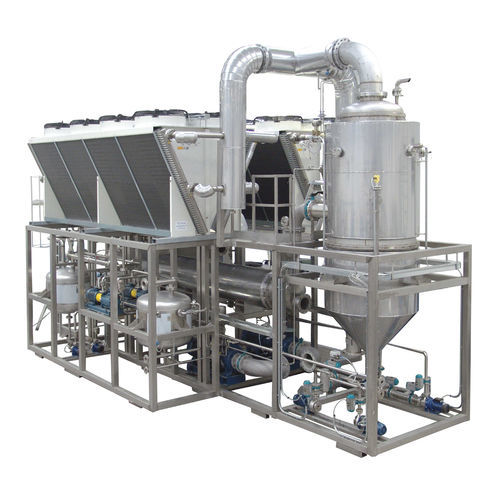

Thermal evaporator ECO DPM SE

vacuumplatelaboratory

Distillation throughput from 420 l/h to 7 m3/h Single or multiple effect vacuum evaporator, for the effective concentration of water-based solutions. To be applied whenever alternative source energy are available. It can be powered with hot water, steam, diathermic oil. Ideal to recycle any waste heat and to be combined with alternative source boilers. Suitable for the treatment of large flow rates of wastewater, where limited maintenance is required. Versatile and technological, it is advisable to saline waters, leachate. Ideal in chemical & pharmaceutical, energy industry, industrial and municipal waste disposal sites. Vertical boiling vessels free inside with thermal insulation, external maintenance-friendly tube bundle heat exchangers, manways and sight glasses with illuminators, condensation with plate exchangers, full automatic operation with PLC and touch screen. Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids. It can be designed to treat one or different water-based solutions at the same cycle.
