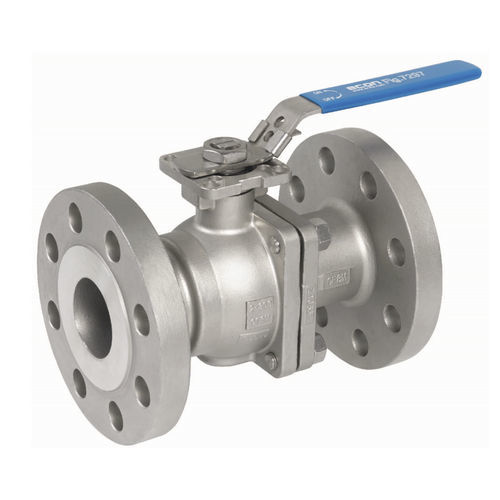

Ball valve 30E10 seriesleverfor controlseat
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Body
- seat, lockable, stainless steel, carbon steel, PTFE
- Applications
- for the chemical industry, flange, for the gas industry, for oil industry applications, for OEM
- Other characteristics
- ISO, anti-static, ATEX
- DN
Min.: 12.7 mm
(0.5 in)Max.: 203.2 mm
(8 in)
Description
The Econ® 30E10 Series is a two piece, full port, flanged end ball valve with an ISO 5211 compliant direct mount actuation pad. The 30E10 is available in sizes ranging from ½” to 6” with ASME Class 300 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and support a variety of seat materials.
CF8M and WCB Bodies/316SS Trim
Fire Safe to API 607 6th Edition
Built-in ISO 5211 Mounting Pad for Easy Automation
ATEX 94/9/EC (Ex II 2 G-D EX-c II) Anti-static Design
TFM 1600 Seat Material (PTFE, RTFE, TFE/SS Options)
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
TA-Luft (VDI 2440, Sec. 3.3.1.3) Certified Live-loaded
Stem Packing
Lockable Lever Handle or “T” Handle
IEC 61508, SIL 2 capable
30° & 60° V-Notch Optional Control Ball
Standards
Design: ASME B16.34, API 608
Fire Safe: API 607, ISO 10497
Face to Face: ASME B16.10
Wall Thickness: ASME B16.34
End Flange: ASME B16.5
Inspection and Testing: API 598
