Ball valve 10E15 series
leverfor controlseat

ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Function
for control
Body
seat, stainless steel, carbon steel, PTFE
Applications
for the chemical industry, flange, for the gas industry, for oil industry applications, for storage tanks, for OEM
Other characteristics
ISO, anti-static
DN

Max.: 152.4 mm
(6 in)

Min.: 12.7 mm
(0.5 in)

Description

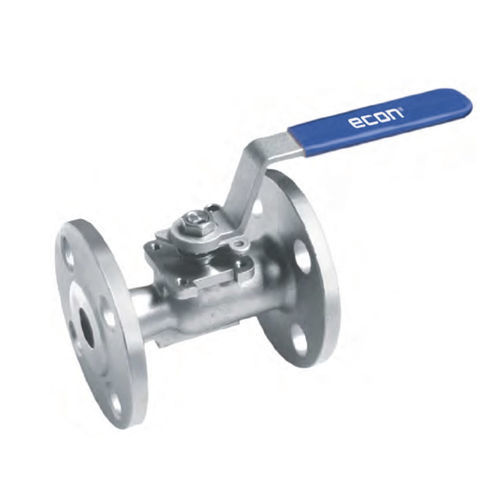

The Econ® 10E15 Series is a one piece, reduced port, flanged end ball valve with a bracket mount actuation pad. The 10E15 is available in sizes ranging from ½” to 6” with ASME Class 150 flanges. Valve bodies are made of CF8M or WCB with 316SS trim and TFM 1600 seats. CF8M and WCB Bodies/316SS Trim Fire Safe Design Approved Built-in ISO 5211 Mounting Pad for Easy Automation TFM 1600 Seat Material (PTFE, RTFE Options) Anti-Static Devices for Ball-Stem-Body Blow-out Proof Stem Pressure Balance Hole in Ball Slot Standards Design: ASME B16.34, API 608 Wall Thickness: ASME B16.34 End Flange: ASME B16.5 Inspection and Testing: API 598
