Ball valve 30E10-V-Port
leverfor controlseat

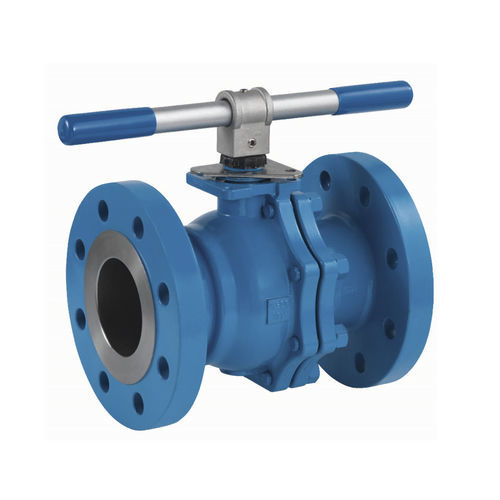

Ball valve - 30E10-V-Port - Econ Brand Valves - lever / for control / seat
Ball valve - 30E10-V-Port - Econ Brand Valves - lever / for control / seat
Ball valve - 30E10-V-Port - Econ Brand Valves - lever / for control / seat - image - 2
Ball valve - 30E10-V-Port - Econ Brand Valves - lever / for control / seat - image - 3
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Function
for control
Body
seat, lockable, stainless steel, carbon steel
Applications
for the chemical industry, flange, for the gas industry, for oil industry applications, for storage tanks, for OEM
Other characteristics
ISO, anti-static, ATEX
DN

Min.: 12.7 mm
(0.5 in)

Max.: 203.2 mm
(8 in)

Description

The Econ® 30E10 V-Port Series is a two piece, 30° & 60° V-Notched flanged end ball valve with an ISO 5211 compliant direct mount actuation pad. The 30E10 V-Port is available in sizes ranging from ½” to 8” with ASME Class 300 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and support a variety of seat materials. CF8M and WCB Bodies/316SS Trim Fire Safe to API 607 6th Edition Built-in ISO 5211 Mounting Pad for Easy Automation ATEX 94/9/EC (Ex II 2 G-D EX-c II) Anti-static Design TFM 50/50 Seat Material Blow-out Proof Stem Pressure Balance Hole in Ball Slot TA-Luft (VDI 2440, Sec. 3.3.1.3) Certified Live-loaded Stem Packing Lockable Lever Handle or “T” Handle IEC 61508, SIL 2 capable Standards Design: ASME B16.34, API 608 Fire Safe: API 607, ISO 10497 Face to Face: ASME B16.10 Wall Thickness: ASME B16.34 End Flange: ASME B16.5 Inspection and Testing: API 598
