Ball valve 30E15 leverfor controlseat
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Body
- seat, stainless steel, carbon steel, PTFE
- Applications
- for the chemical industry, flange, for the gas industry, for oil industry applications, for storage tanks, OEM
- Other characteristics
- ISO, anti-static
- DN
Max.: 152.4 mm
(6 in)Min.: 12.7 mm
(0.5 in)
Description

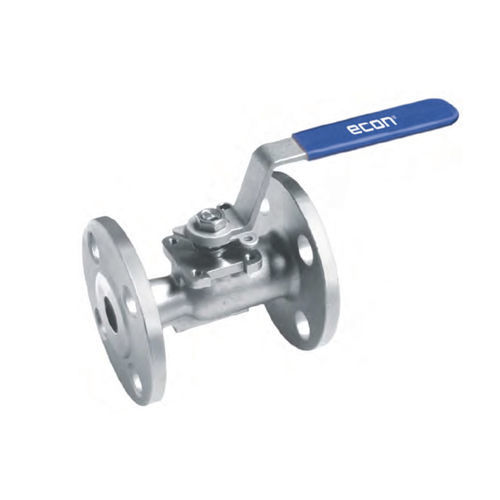

The Econ® 30E15 Series is a one piece, reduced port, flanged end ball valve with a bracket mount actuation pad. The 30E15 is available in sizes ranging from ½” to 6” with ASME Class 300 flanges. Valve bodies are made of either CF8M or WCB with 316SS trim and TFM 1600 seats.
CF8M and WCB Bodies/316SS Trim
Fire Safe Design Approved
Built-in ISO 5211 Mounting Pad for Easy Automation
TFM 1600 Seat Material (PTFE, RTFE Options)
Anti-Static Devices for Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Standards
Design: ASME B16.34, API 608
Wall Thickness: ASME B16.34
End Flange: ASME B16.5
Inspection and Testing: API 598
