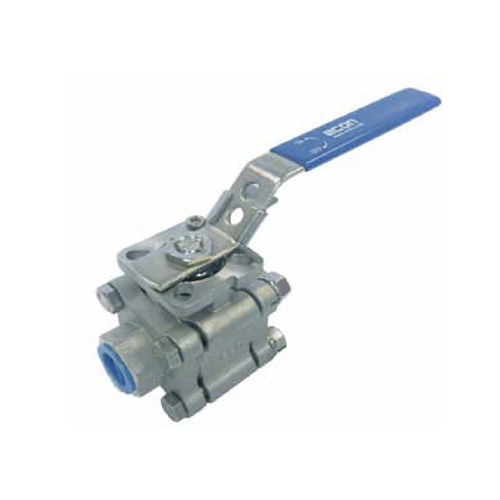

Ball valve 2WE20 series

leverfor controlthreaded

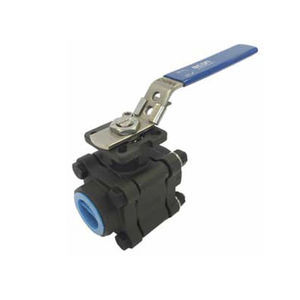

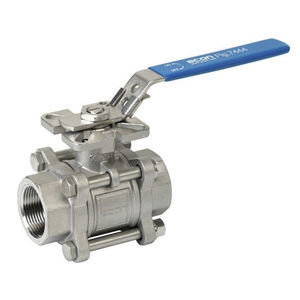

The Econ® 2WE20/5WE20 NPT Series is a premium three piece, full port ball valve with NPT ends and an ISO 5211 compliant direct mount actuation pad. The 2WE20 is rated to 2000 WOG in sizes ranging from ¼” to 1” while the 5WE20 is rated to 1500 WOG in sizes ranging from 1-¼” to 2”. Valve bodies are made of either CF8M or WCB with 316SS trim and support a variety of seat materials. This valve is also available in Socket Weld and Butt Weld. CF8M and WCB Bodies/316SS Trim Fire Safe to API 607 5th Edition Built-in ISO 5211 Mounting Pad for Easy Automation TFM 4215 Seat Material (TFM 1600 + 15% Carbon Option) Anti-Static Devices for Ball-Stem-Body Blow-out Proof Stem Pressure Balance Hole in Ball Slot TA-Luft Design/Approved Live Loaded Stem Packing 30° & 60° V-Notch Optional Control Ball Standards Design: ASME B16.34, MSS SP-110, API608 2000 WOG for ¼” – 1” 1500 WOG for 1-¼” – 2” Fire Safe: API 607, ISO 10497 Wall Thickness: ASME B16.34 Class 800 Pipe Thread: ASME B1.20.1 Butt Weld: ASME B16.25 (Ø B2 Sch 80) Socket Weld ASME B16.11 Inspection and Testing: API 598
