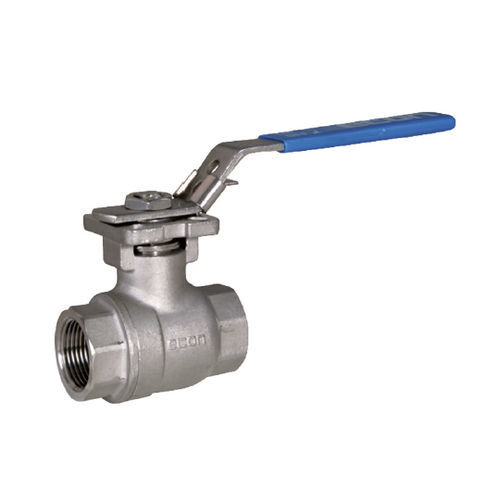

Ball valve 2WE30 seriesleverfor controlfor dairy products
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Media
- for dairy products
- Body
- threaded, stainless steel
- Applications
- pipe
- Other characteristics
- ISO, anti-static
- DN
Max.: 50.8 mm
(2 in)Min.: 6.35 mm
(0.25 in)
Description
The Econ® 2WE20/5WE20 Series is a two piece, full port ball valve with NPT ends and an ISO 5211 compliant direct mount actuation pad. The 2WE30 is rated to 2000 WOG in sizes ranging from ¼” to 1” while the 5WE30 is rated to 1500 WOG in sizes ranging from 1-¼” to 2”. Valve bodies are made of either CF8M or WCB with 316SS trim and TFM 4215 seats.
CF8M and WCB Bodies/316SS Trim
Fire Safe Design Approved
Built-in ISO 5211 Mounting Pad for Easy Automation
TFM 4215 Seats
Anti-Static Devices for Ball-stem-body
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
TA-Luft Design/Approved Live Loaded Stem Packing
Standards
Design: ASME B16.34, MSS SP-110
2000 WOG for ¼” – 1”
1500 WOG for 1¼” – 2”
Pipe Thread: ASME B1.20.1
Inspection and Testing: API 598
